Home > English site > Articles > Treeview control > Examples

An MSForms (all VBA) treeview; Examples

This page displays some examples where our treeview has been used.

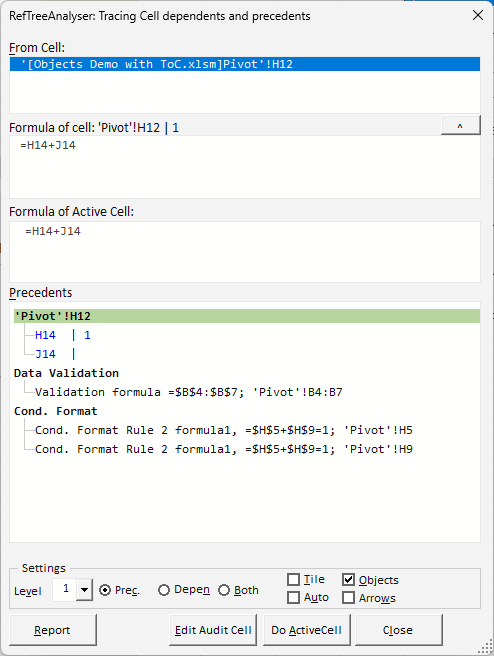

Our RefTreeAnalyser also implements the treeview control, as you can see here:

Screenshot of RefTreeAnalyser, the ultimate Excel formula auditing tool.

The City Of Amsterdam

The Engineering Desk of the City of Amsterdam has implemented our Treeview in a VBA driven tool which is used by the technical designers of the Engineering desk so their drawings comply with the Dutch CAD standard NLCS. This is what the treeview looks like in their software:

Screenshot of technical drawing tool.

Extended Project Explorer

(by Peter Thornton)

The purpose of this file is to show a few ways how the VBA Treeview can be used in a real life app. The treeview lists projects and modules similar to the VBE's (Visual Basic Editor) Project Explorer, but the branches are extended to list procedures and declarations. These can be double clicked and in turn activated in the VBE.

Other features include routines to search the treeview, return details of the treeview to a sheet to document projects, and more. Please refer to the main demo files for the most recent version of the VBA Treeview.

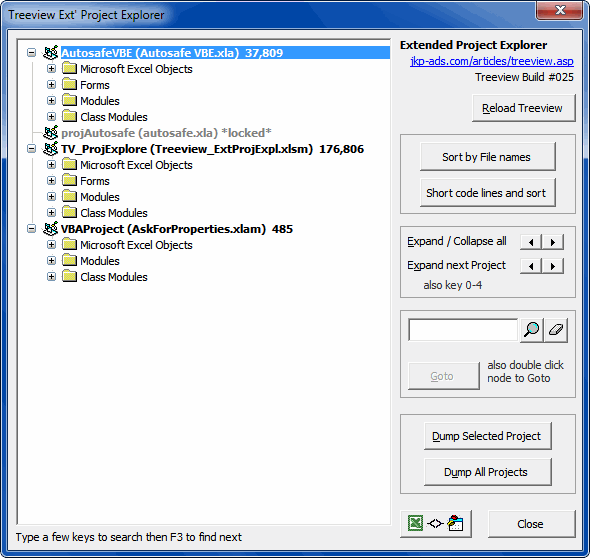

It looks like this:

Screenshot of Extended Project Explorer.

Access and Word users: please note documentation is included in the main Excel demo.

Download The Extended Project Explorer V1.0 (Updated Dec 04, 2013, downloaded: 3,978times)

Access Archon article

Description: Helen Feddema from Access Watch published an Access Archon article with a sample .accdb database using the Treeview alternative that works in 64-bit Office; also includes a sample .mdb database that uses the native Treeview control.

XER toolkit

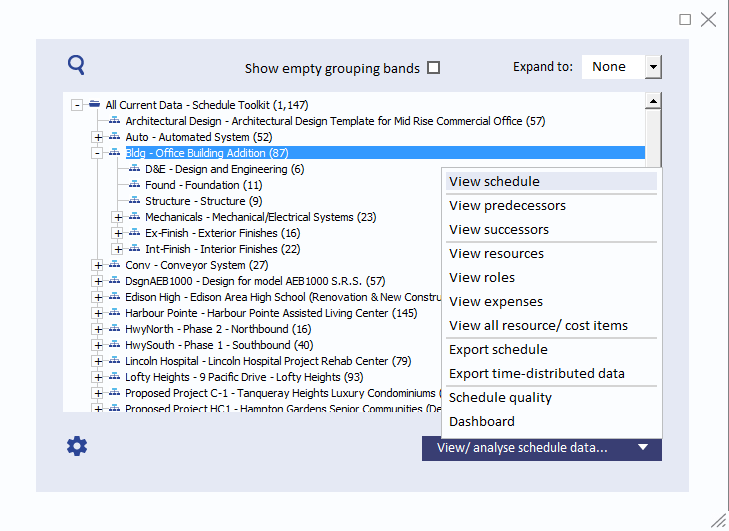

The XER Toolkit is an MS Excel based application that can read, display and analyse data from Oracle's Project Management application, Primavera. The toolkit helps to improve the quality of project schedules by providing visibility without the requirement for (expensive) Primavera licences. As an enterprise system, the data within Primavera is hierarchically arranged and so the Treeview developed by JKP has become an integral and essential part of the toolkit's data access functionality. See the video. One of the screens in the tool:

Treeview data selector

Spanish diseases classification list

From Diego Pereira: This treeview loads the International Classification of Diseases in Spanish. By entering a word, a part of a word or a ICD10 code, one can locate matching nodes, highlight them and expand them. The main purpose of this example is to serve as a simple implementation of the Treeview in an Access style.

Download the sample Access accdb database (05 Mar 2014, downloaded 2,958 times)

Treeview showing Spanish Diseases classifications

Sheet navigation tool

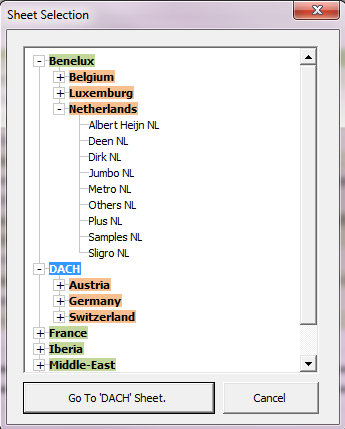

Yves Leboutte sent us these screenshots:

Go To sheet: Allows to jump to worksheet < List of countries
Jump to sheet

Go To Item: To jump to 1 item (rows)
Jump to item

Item Selection: Allows to save options to some items in 1 or all childs sheets.
Item selection

Filtered tree

Tiago Costa from EWEN Energy shared a treeview with us which the user can filter. The filtering is implemented quite simple by filtering the table containing the source data for the tree and rebuilding the tree after filtering using the filtered table (in a Worksheet). I particularly like the looks of the form, very "modern UI"-like:

Nice form with filtered tree

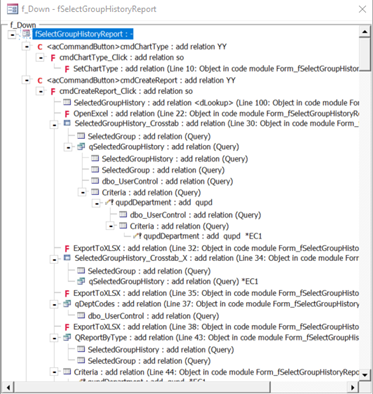

Template system

Template system

FREE open source Access database for IT Asset Management purposes

Florian Rossmark created an IT Assets database, a free open source IT Assets management database project based on Microsoft SQL server as a back end and Microsoft Access as front end. The Wiki module in the database was accomplished by using the TreeView control for easy navigation through structured data controlled by the actual end user.

Template system

Peter Denney's showing a popup with more information pertaining to a node

Template system

Your implementation

We're always interested to see how people have implemented the VBA Treeview. So please feel free to send a screenshot with a brief description or relevant details.



Showing last 8 comments of 32 in total (Show All Comments):


Comment by: Peter Thornton (6/14/2016 2:09:07 PM)

Hi Life,

Indeed not easy, that said nothing is impossible. I suspect the biggest challenge would be catering for variable widths when the scrollbars are implemented for a left-right environment, or do they also automatically switch in right-left?

Otherwise if the entire 'insidewidth' is fixed at design it might be easier, still a fair amount of work though!


Comment by: David Bickerton (7/22/2016 5:22:26 PM)


I am using MSForms (All VBA) Treeview - it is great so far - thanks for all the help.

I am having issues with SETTING new PARENT NODES within the code ? Example : How can I do this when I have 10 NODES all at Level 0. Then I want one of these Nodes to move to the sibling of one of the others that already exist ? I am assuming I do something like

Set mcTree.Nodes(strKey).ParentNode.Key = "117"

But I am having problems.




Comment by: Peter Thornton (8/1/2016 3:39:01 PM)

Hi David,

The treeview includes a 'move' method, eg

mcListMove cSource, cDest

..where cSource is the node you want to move and cDest is the new parent.

See "Move" in the documentation in the Excel demo (clsTreeview) if you want to place before or after some node.


Comment by: Steven Wade (7/28/2017 3:54:18 PM)

Do you have any code examples that show how to synchronize the data record displayed on an MS Access form based on the value selected in the tree control (subform) on that same page? (similar to how linking master and child fields allows form/subform synchronization)


Comment by: Peter Thornton (7/31/2017 8:12:58 AM)

Hi Steven,

To trap the treeview's click event and whatever Access form event traps the selected data record and the events select or activate the reciprical item, something like this:

Private Sub mcTree_Click(cNode As clsNode)
    ' activate associated data record
End Sub

'In the Access form event
k = the KeyOrIndex associated with selected data item

    Set mcTree.ActiveNode = mcTree.Nodes(k)
    mcTree.ScrollToView mcTree.ActiveNode


Comment by: Giancarlo (7/3/2018 12:43:38 PM)

Changes required for Excel 2016 64 bit Windows 10
''#If Win64 Then
    Private Declare PtrSafe Function SetWindowLong Lib "user32" Alias "SetWindowLongPtrA" ( _
                                            ByVal hwnd As LongPtr, _
                                            ByVal nIndex As Long, _
                                            ByVal dwNewLong As LongPtr) As Long 'Ptr - Modify
#If VBA7 Then

Private Declare PtrSafe Function SetParent Lib "user32" ( _
                                            ByVal hWndChild As LongPtr, _
                                            ByVal hWndNewParent As LongPtr) As Long 'Ptr - Modify


Comment by: Fungencio (11/15/2018 6:59:30 PM)

Hello there,

I have been looking for a Treeview like yours, it's such an excellent work!
I wonder if it would be possible to link the Excel VB Treeview data that we add (input) to a Data Validation list cell, by different levels
For example:
The macro is run and then we start adding nodes as:

-Node 1
- Subnode 1.1
- Subnode 1.2
-Node 2
- Subnode 2.1
-Node 3

At the same time we have 2 data validation list cells in which:

-In the first cell its shown the first level (Node 1/Node 2/Node 3)
-In the second cell, depending on what is selected in the first one it will show:
(If Node 1 is selected in the first cell, it will show Subnode 1.1/Subnode 1.2...etc

I hope you understand
Thanks a lot!


Comment by: Jan Karel Pieterse (11/16/2018 8:09:03 AM)

Hi Fungencio,

Perhaps this helps:


Have a question, comment or suggestion? Then please use this form.
